CONTROLLED COUPLING  HYDRA-MATIC FUNDAMENTALS
(pg 82)

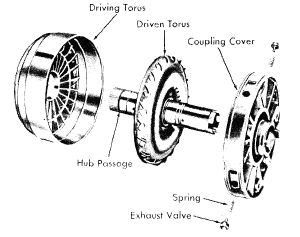

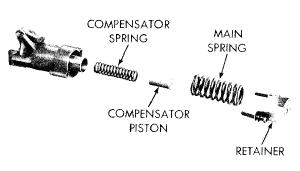

b. In the new transmission, a simple fluid clutch replaces the multiple disc front clutch. e. The front servo has been eliminated from the new transmission.

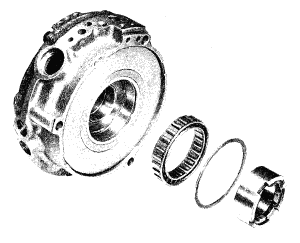

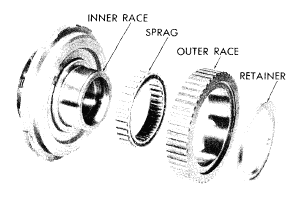

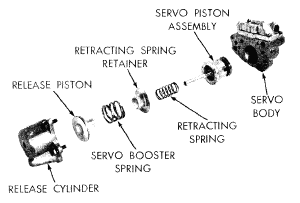

c. The front band has been replaced by a simple one-way clutch called a sprag clutch. f. The rear servo has also been eliminated from the new transmission.


d. The rear band has also been replaced by a sprag clutch.
